Set and Track Scenario Targets

Use targets and built-in analytics to track and evaluate the impact of your organizational changes. You can set specific performance thresholds—such as headcount or span of control—and monitor changes in real time to ensure your design meets strategic goals.

Define a Scenario Target

Log into the application and open your scenario.
Navigate to the Org Chart tab.

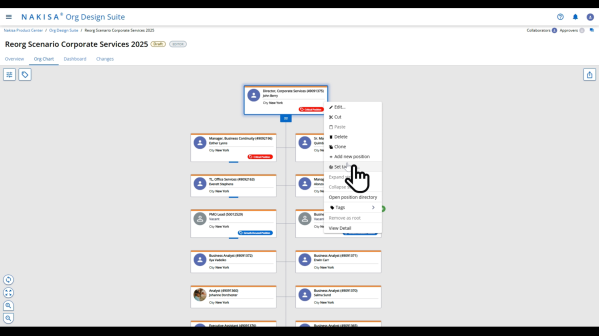

Right-click the position for which you want to set a target.
From the context menu, select Set Target.

Select a Metric

In the Set Target window, select a metric from the analytics list.
Example: Span of Control
Enter the Lower Bound and Upper Bound values for the selected metric.
Example: Lower Bound = 5, Upper Bound = 10
Click Save.

Once saved, an indicator icon will appear next to the position to reflect its compliance status:

A red upward arrow indicates the metric exceeds the upper limit.
A green check mark appears when the metric is within range.

Restructure to Meet Targets

To adjust your structure to meet defined targets:

Use multi-select to move multiple roles:
- Hold the Control key and click each box individually, or
- Click and drag to select a group of positions.
Drag and drop the selected roles under a new or existing manager.
Example:
- Move all Project Manager roles under PMO Lead.
- Move all Business Analyst roles under Business Development Manager.
After the move:
- Each updated position will display a Moved indicator in the top-right corner.
- The org chart will reflect the new reporting structure immediately.

Refresh and Analyze Impact

To review how structural changes affect your targets:

Click the Refresh Analytics button from the top menu.
In the analytics panel:
- Review the Delta Column to compare before and after values.
- Monitor metrics like Span of Control and Total Salary to evaluate progress.

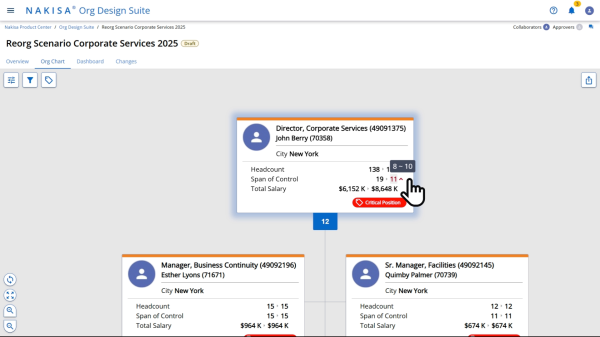

Example Insight

Before: John Berry’s span of control = 19
After restructuring: Span of control = 11
Result: The indicator shows the metric is closer to target, with significant improvement.

You can also monitor financial impact through updated Total Salary values, reflecting the budgetary implications of structural changes.

Best Practices

Use targets early in your scenario to guide strategic design.
Regularly refresh analytics to evaluate each change in real time.
Use the Delta values to justify decisions during stakeholder reviews.
Combine visual indicators and numerical thresholds for comprehensive insight.

Targets and analytics give you actionable visibility into how your organizational design decisions align with business goals. Use them to stay aligned, stay accountable, and make informed, measurable improvements.
